- Place of Origin: Shandong, China
- Brand Name: ONLYKEM
- Model Number: OKM
- :
- :
- :
- :

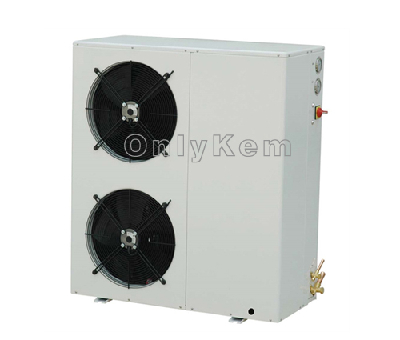

1. Intergrated modular assembly, factory pre-equipped refrigeration parts and electrical components, etc
2. Compacted structure, easy to install and maintain.
3. Widely used in Restaurants, shops, shopping malls, cold storage and other place.
4. Whole unit needs to install in a shell for accessories protection.
High quality material, New technology production machine and professional technician to make sure condensing unit quality.
- Place of Origin: Shandong, China
- Brand Name: ONLYKEM
- Model Number: OKM
- :
- :
- :
- :
Condensing unit | Compressor | Condenser | Connector | Dimension | ||||||
Model | Model | Qty of fan | Diameter (Φmm) | Air flow (m3/h) | Fan power (w) | Suction (mm) | Liquid (mm) | L | W | H |
OKM02A | ZB15KQE | 1 | 450 | 2510 | 60 | 16 | 10 | 1010 | 425 | 840 |
OKM03A | ZB21KQE | 1 | 450 | 2510 | 60 | 16 | 10 | 1010 | 425 | 840 |
OKM04A | ZB29KQE | 2 | 450 | 2510*2 | 2*60 | 19 | 12 | 1020 | 425 | 1245 |
OKM05A | ZB38KQE | 2 | 450 | 2510*2 | 2*60 | 19 | 12 | 1020 | 425 | 1245 |
OKM06A | ZB45KQE | 2 | 450 | 2510*2 | 2*60 | 19 | 12 | 1020 | 425 | 1245 |
Condensing unit | Compressor | Condenser | connector | Dimension | ||||||
Model | Model | Qty of fan | Diameter (Φmm) | Air flow (m3/h) | Fan power (w) | Suction (mm) | Liquid (mm) | L | W | H |
OKL02A | ZF06KQE | 1 | 450 | 2510 | 60 | 16 | 10 | 1010 | 425 | 840 |
OKL03A | ZF09KQE | 1 | 450 | 2510 | 60 | 16 | 10 | 1010 | 425 | 840 |
OKL04A | ZF13KQE | 2 | 450 | 2510*2 | 2*60 | 19 | 12 | 1020 | 425 | 1245 |
OKL05A | ZF15KQE | 2 | 450 | 2510*2 | 2*60 | 19 | 12 | 1020 | 425 | 1245 |
OKL06A | ZF18KQE | 2 | 450 | 2510*2 | 2*60 | 19 | 12 | 1020 | 425 | 1245 |
